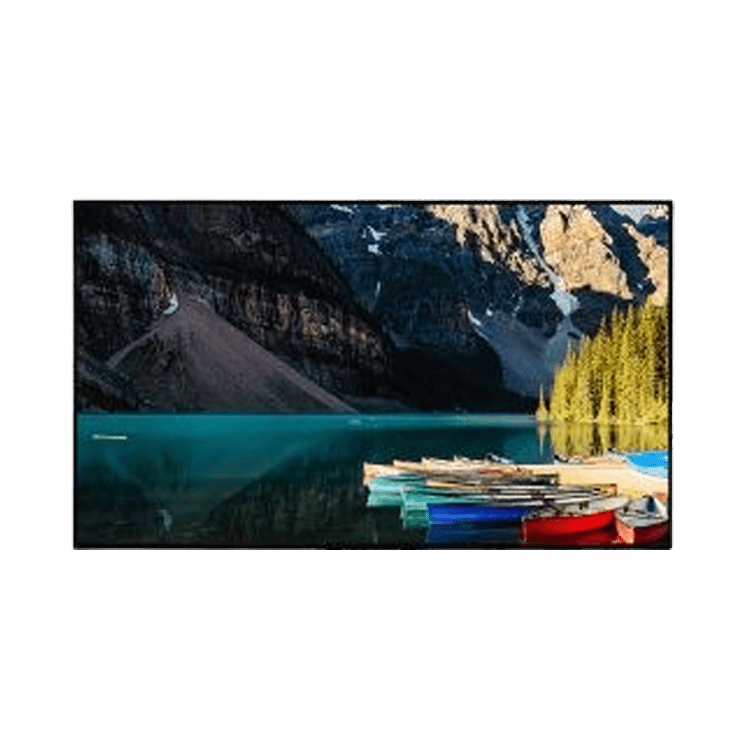

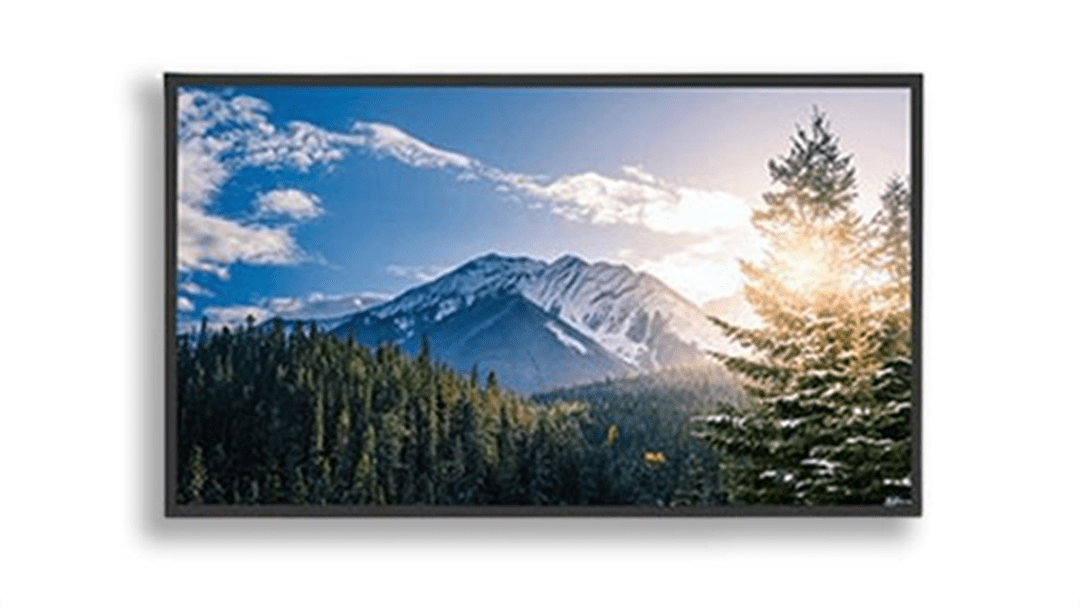

10.1 inch 500 Nit High brightness LCD module with high brightness, high definition, high contrast and other features. The product uses LED backlight technology and is equipped , which can provide a clear and bright picture effect, and can maintain a good display effect even under strong light. At the same time, the LCD display module can also be equipped with touch screen function, support multi-touch control, can facilitate the user to manually touch operation.
Panel Brand | Risingstar | Panel Model | G101WHB-S05 |
Panel Size | 10.1″ | Panel Type | a-Si TFT-LCD ,LCD |
Resolution | 1280(RGB)×800PPI | Pixel Format | RGB Vertical Stripe |
Display Area | 216.96(W)×135.6(H) mm | Bezel Opening | / |
Outline Size | 227.91(W)×148(H)×8.4(D) mm | Surface | Fog surface (Haze 28%),Hard coating (3H) |
Brightness | 500 cd/m²or customized | Contrast Ratio | 1300:1 (Typ.) (TM) |
Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | AMVA3, Normally Black, Transmissive |
Display Colors | 262K/16.7M | Response Time | 8 (Typ.)(G to G) ms |
Frequency | 60Hz | Input Voltage | 12V (Typ.) |
Backlight type | WLED | Signal Interface | 40 pins LVDS (2 ch, 8-bit) ,terminal |
Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
