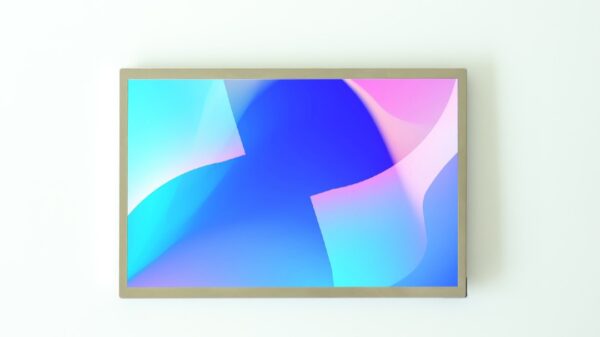

15.6 inch 1000 nits high brightness LCD panel
Size: 15.6 inch
Resolution: 1920*1080
Brightness: 1000 nits
Category: Wide temperature LCD panel
Model No.: RS156HCE-GE10
RS156HCE-GE10 features:
| Panel Brand | RisingStar | Panel Model | RS156HCE-GE10 |
| Panel Size | 15.6″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080 | Pixel Format | RGB Vertical Stripe |
| Display Area | 344.232 (H) × 193.59 (V) mm (A.A) | LCD screen | AAS |
| Outline Size | 363.8（H）× 215.98 (V) × 9.6 (D) mm | Surface | Hard coating(3H), Anti-glare low reflection treatment of the front polarizer (Haze) |
| Brightness | 1000 cd/m²or customized | Contrast Ratio | 800:1 (Typ.) |
| Viewing Angle | 85/85/85/85(Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.2M | Response Time | 13/12 (Typ.)(Tr/Td) ms |
| Frequency | 60Hz | Supply voltage | 3.3V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 40 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
RisingStar wide temperature high brightness LCD panel series:
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS101ICE-GE07 | 10.1 | 700 | 1280*800 | -20 ~ 70 ℃ |
| RS156HCE-GE10 | 15.6 | 1000 | 1920*1080 | -20 ~ 70 ℃ |
| RS190E0M-GE10 | 19 | 1000 | 1280*1024 | -20 ~ 70 ℃ |
| RS215FHB-GE15 | 21.5 | 1500 | 1920*1080 | -20 ~ 70 ℃ |
| RS270FHB-GD20 | 27 | 2000 | 1920*1080 | -20 ~ 70 ℃ |
| RS320DPY-GD30 | 32 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS490EPY-GD30 | 49 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS550DPY-GD45 | 55 | 4500 | 1920*1080 | -20 ~ 70 ℃ |
| RS650QUB-GD30 | 65 | 3000 | 3840*2160 | -20 ~ 70 ℃ |
| RS750ENT-GD40 | 75 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS860EQL-GD40 | 86 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS980DQY-GD35 | 98 | 3500 | 3840*2160 | -20 ~ 70 ℃ |
