10.1 inch 500 Nit High brightness LCD module with high brightness, high definition, high contrast and other features. The product uses LED backlight technology and is equipped , which can provide a clear and bright picture effect, and can maintain a good display effect even under strong light. At the same time, the LCD display module can also be equipped with touch screen function, support multi-touch control, can facilitate the user to manually touch operation.

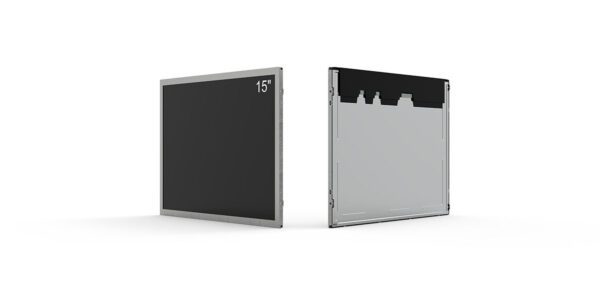

Panel Brand | Risingstar | Panel Model | RS150X0M-GE10 |
Panel Size | 15″ | Panel Type | a-Si TFT-LCD ,LCM |
Resolution | 1024(RGB)×768 | Pixel Format | RGB Vertical Stripe |
Display Area | 304.128(W)×228.096(H) mm | Bezel Opening | / |
Outline Size | 326.5(W)×253.5(H)×10(D) mm | Surface | anti-glare (Haze 25%),Hard coating (3H) |
Brightness | 1000 cd/m²or customized | Contrast Ratio | 1000:1 (Typ.) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
Display Colors | 16.7M , 72% NTSC | Response Time | 30(Typ.)(Tr+Td) ms |
Frequency | 60Hz | Supply voltage | 3.3V (Typ.) |
Weight | / | Signal Interface | LVDS (1 ch,8-bit),30pins |
Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ |
