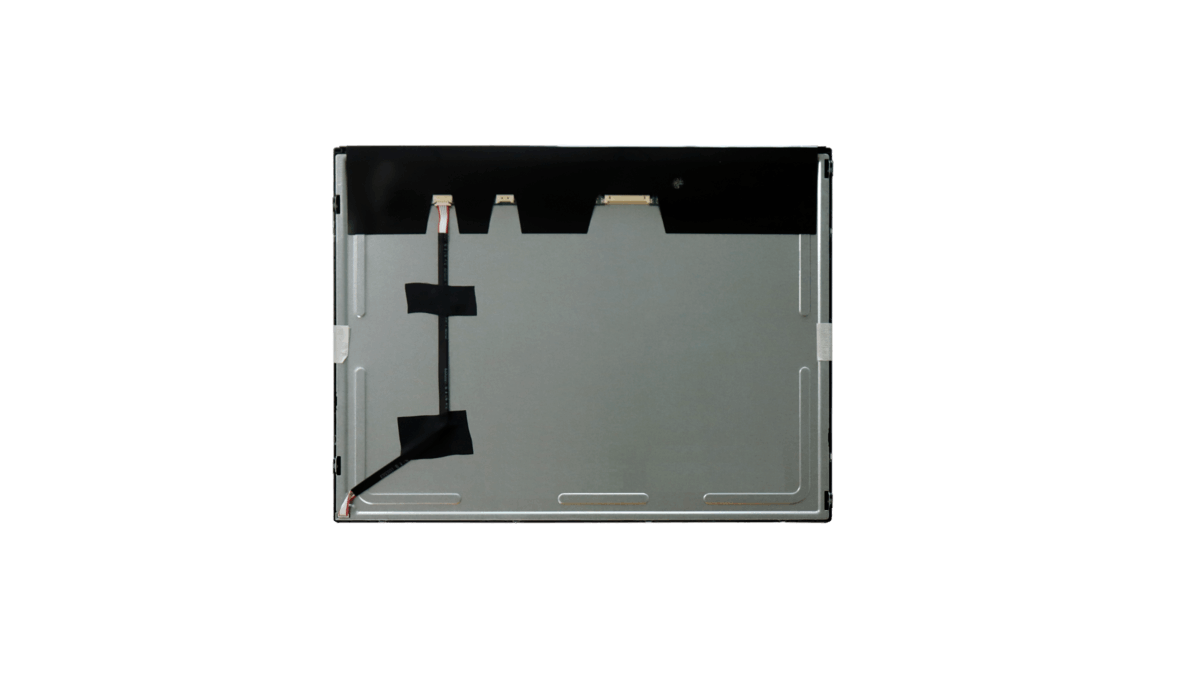

19 inch high brightness wide temperature LCD panel
Size: 19 inch
Resolution: 1280*1024
Brightness: 1000 nits
Category: Wide temperature LCD panel
Model No.: RS190E0M-GE10
RS190E0M-GE10 features:
| Panel Brand | RisingStar | Panel Model | RS190E0M-GE10 |
| Panel Size | 19″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1280(RGB)×1024 | Pixel Format | RGB Vertical Stripe |
| Display Area | 374.784(H) × 299.827(V) mm (A.A) | LCD screen | ADS |
| Outline Size | 396（H）× 324(V) × 13.38(D) mm | Surface | Hard coating(3H), Anti-glare low reflection treatment of the front polarizer (Haze 25%) |
| Brightness | 1000 cd/m²or customized | Contrast Ratio | 1000:1 (Typ.) |
| Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | Normally Black, Transmissive |
| Display Colors | 16.7M | Response Time | 8/8 (Typ.)(Tr/Td) ms |
| Frequency | 60Hz | Supply voltage | 5.0V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 30 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
RisingStar wide temperature high brightness LCD panel series:
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS101ICE-GE07 | 10.1 | 700 | 1280*800 | -20 ~ 70 ℃ |
| RS156HCE-GE10 | 15.6 | 1000 | 1920*1080 | -20 ~ 70 ℃ |
| RS190E0M-GE10 | 19 | 1000 | 1280*1024 | -20 ~ 70 ℃ |
| RS215FHB-GE15 | 21.5 | 1500 | 1920*1080 | -20 ~ 70 ℃ |
| RS270FHB-GD20 | 27 | 2000 | 1920*1080 | -20 ~ 70 ℃ |
| RS320DPY-GD30 | 32 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS490EPY-GD30 | 49 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS550EPY-GD45 | 55 | 4500 | 1920*1080 | -20 ~ 70 ℃ |
| RS650QUB-GD30 | 65 | 3000 | 3840*2160 | -20 ~ 70 ℃ |
| RS750ENT-GD40 | 75 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS860EQL-GD40 | 86 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS980DQY-GD35 | 98 | 3500 | 3840*2160 | -20 ~ 70 ℃ |
