RisingStar

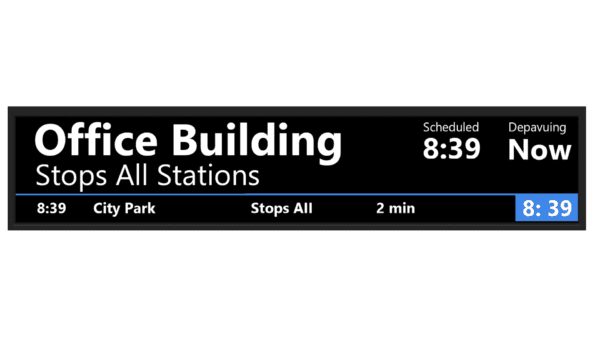

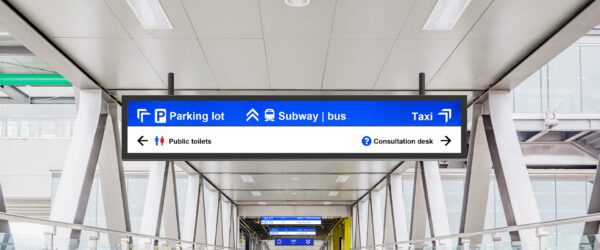

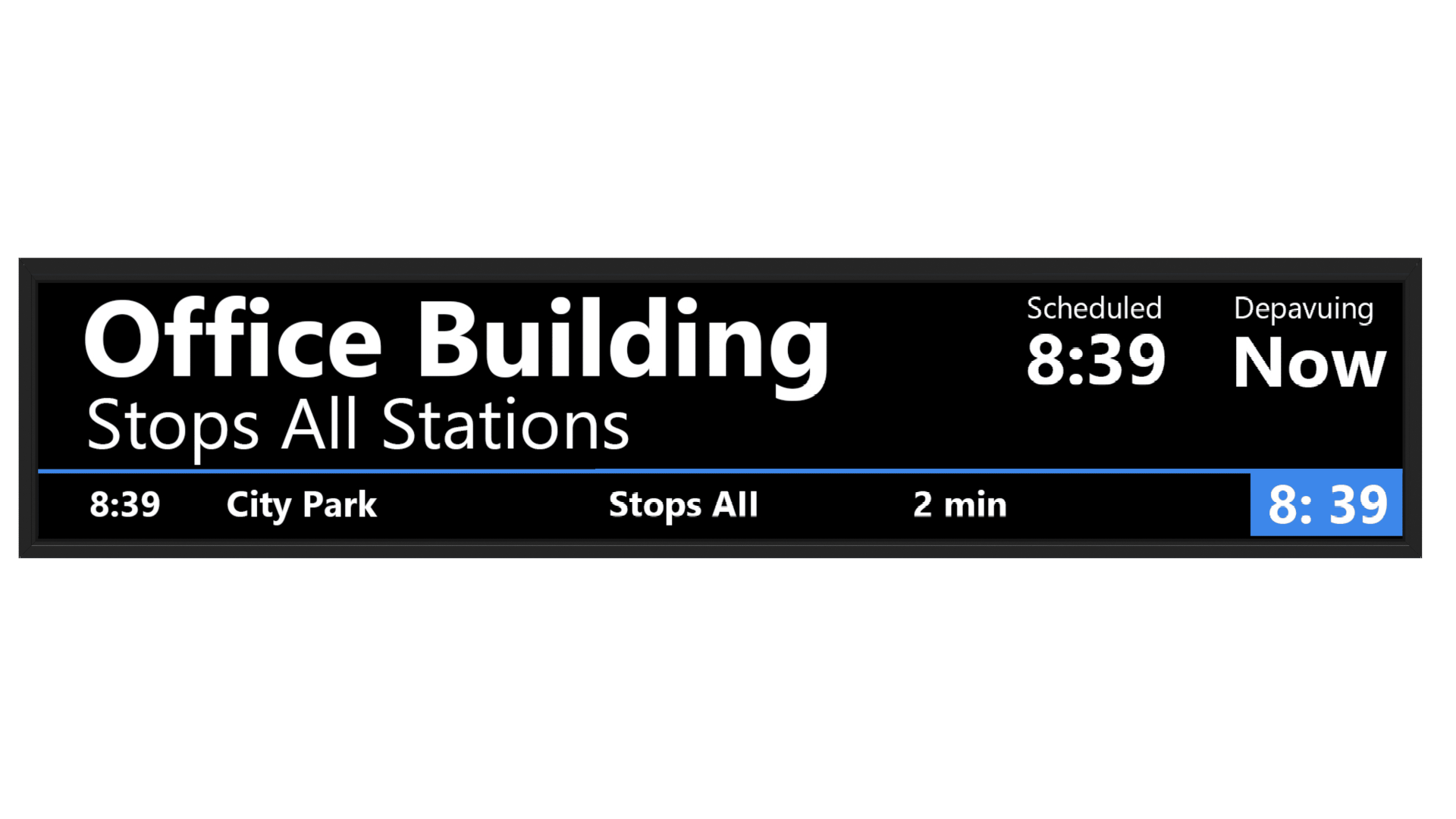

48.5 inch bar type passenger information LCD panel

Size: 48.5 inch

Resolution: 1920*360

Brightness: 800 nits

Category: Wide temperature LCD panel

Model No.: RS485IVN-GE08

Panel Brand RisingStar Panel Model RS485IVN-GE08
Panel Size 48.5″ Panel Type a-Si TFT-LCD ,LCM
Resolution 1920(RGB)×360 Pixel Format RGB Vertical Stripe
Display Area 1209.6(W)×226.8(H) mm MTBF 50,000 hrs
Outline Size 1219.6(W)×248.7(H)×27.5(D) mm Surface Matte (Haze 3%)
Brightness 800 cd/m²or customized Contrast Ratio 4000:1 (Typ.)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Display Mode Normally Black, Transmissive
Display Colors 8-bit 16.7M Response Time 8(Typ.)(Tr+Td) ms
Frequency 60Hz Supply voltage 12.0V (Typ.)
Weight TBD (Typ./Max.) Signal Interface LVDS  51 pins
Environment Operating Temp.:-20℃~60℃; Storage Temp.:-20℃~70℃



Model name Size (inch) brightness Resolution Operating temperature
RS270ENT-NE10-OP 27 1000 1920*1080 0 ~ 50 ℃
RS270ENT-NE20-OP 27 2000 1920*1080 0 ~ 50 ℃
RS280IVN-GD20-OP 28 2000 1920*360 -20 ~ 60 ℃
RS290EJS-NE10-OP 29 1000 1920*540 0 ~ 50 ℃
RS320ENT-ND20-OP 32 2000 1920*1080 0 ~ 50 ℃
RS420IVN-GD30-OP 42 3000 1920*480 -20 ~ 70 ℃
RS430ENT-ND20-OP 43 2000 1920*1080 0 ~ 50 ℃
RS490ENT-GD30-OP 48.5 800 1920*1080 -20 ~ 60 ℃
RS550ENT-GD40-OP 55 4000 3840*2160 -20 ~ 60 ℃
