Wall Mounted 32 Inch Passenger Information Display Solution

Wall Mounted 32 Inch Passenger Information Display Solution

RisingStar helps railway operators improve passenger travel experience

In order to continuously optimize the passenger experience, railway operators have tried to use display solutions from multiple brands, but none of them achieved the ideal display effect and system stability. Since the introduction of the RisingStar brand 32-inch wall-mounted passenger information display, operational performance has been significantly improved.

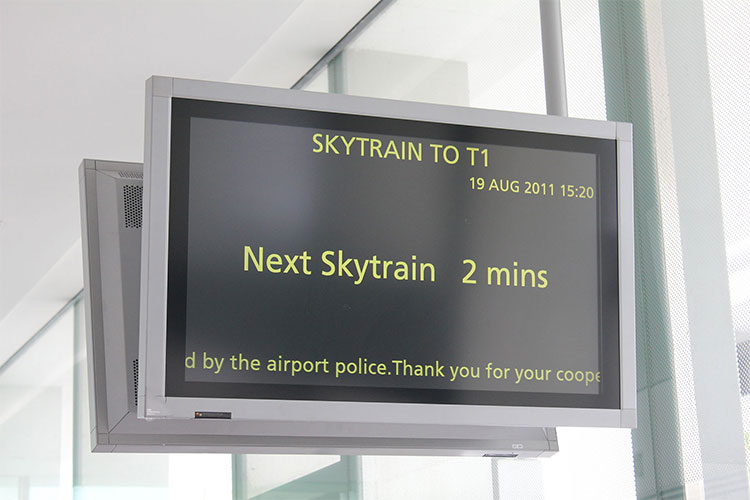

RisingStar displays are currently widely used in various scenarios such as station halls, platforms, and terminals. In the station hall, the display screen updates the destination and estimated arrival time of the first two trains to depart from each platform in real time; the platform area focuses on displaying the arrival time and terminal information of the next and subsequent trains, providing accurate guidance for waiting passengers; and at the terminal, the screen will also clearly display the departure schedule of the train, making it easier for passengers to plan their trips.

In addition, some platform displays also integrate advertising and information video playback functions, which not only provide travel information, but also bring additional commercial value to railway operators. With its excellent image quality, system stability and high customization capabilities, RisingStar has become the preferred information release solution for many railway operators.

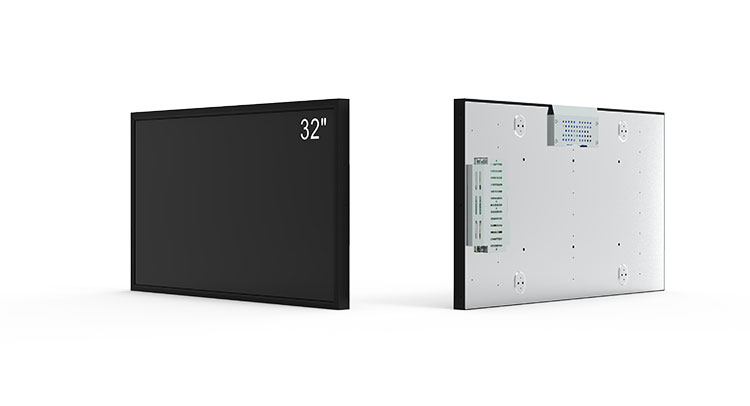

32 Inch Passenger Information Display

.

.

Why Railway Operators Choose RisingStar Display System

RisingStar stands out from many brands and has won wide recognition from railway operators with its outstanding product performance and industry reputation. After many brand comparisons and sample trials, the operator finally chose RisingStar as the core display device of the railway station passenger information system. The reason is not only “display”, but also “system-level value”.

RisingStar provides a variety of product sizes and specifications, from 10.1 inches to 55 inches, covering 13.3″, 15.6″, 17″, 18.5″, 19″, 21.5″, 23.8″, 27″, 32″ and other mainstream models, fully adapting to various scenarios such as station halls, platforms, and terminals. The product adopts industrial-grade LCD modules, which have the advantages of high contrast, low energy consumption, low heat generation, and lightweight design. The core model has a lifespan of up to 30,000 hours and is stable and durable. Some models support a maximum brightness of 5000nits, and with direct backlight technology, it is still clearly readable even in strong outdoor light environments.

In addition, RisingStar All display products have passed rigorous quality tests, including extreme temperature cycle tests from -20℃ to 60℃ for more than 8 hours, and continuous operation for 24~48 hours before leaving the factory to eliminate early faults. The body adopts an all-aluminum alloy structure, which is lighter and more corrosion-resistant than the traditional iron body, and is suitable for long-term deployment in high-traffic and high-load railway station environments.

At the same time, RisingStar not only supports standard 16:9 and 4:3 ratios, but also launches a series of bar screens (such as 19.5″ to 86″) to meet narrow and long spaces or special installation requirements, and is widely used in scenarios such as platform instructions and advertising information display, taking into account the dual goals of information transmission and commercial value.

It is these “seemingly small” products that build the “big system” of railway operations. RisingStar uses professional quality to help railway operators achieve intelligent, refined, and low-maintenance display solutions, and has won the high trust of the market and customers.

.

.

📋 Technical Specifications

ItemSpecification
Panel Size32.0 inches
Panel Typea-Si TFT-LCD, LCD Module
Resolution3840 (RGB) × 2160 (UHD), 139 PPI
Pixel ArrangementRGB Vertical Stripe
Active Area697.306 mm (W) × 392.234 mm (H)
Outline Dimensions709.2 mm (W) × 405.48 mm (H) × 14.2 mm (D)
Brightness350 cd/m² (Typ.)
Viewing DirectionAll Viewing Angles
Viewing Angle (CR≥10)89°/89°/89°/89° (Left/Right/Up/Down)
Display Colors1.07 Billion, 99% sRGB
Weight4.52 kg (Typ.) / 4.75 kg (Max.)
Refresh Rate60Hz (Standard)
120Hz (with MEMC, input 60Hz)
120Hz+120Hz (120Hz Panel + 120Hz Backlight)
240Hz (with MEMC, input 60Hz)
Surface TreatmentAnti-glare (Haze 25%), Hard Coating (3H)
Contrast Ratio1300:1 (Typ., Transmissive)
Response Time14 ms (Typ., G to G)
Display ModeIPS, Normally Black, Transmissive
IPS TechnologyAAS, ADS, AHVA, FFS, HFS, HIS, IPS, New Mode2, PLS, SFT, Vistarich
VA TechnologyASV, FSA, HVA, MVA, PVA, SVA, UV²A, VA
Backlight TypeWLED [17S4P], 30,000 hours, Driver-less
Touch PanelNo Touch
Interface Type30-pin eDP (4 Lanes), HBR2 (5.4 Gbps/lane), Terminal Connector
Power Supply10.0V (Typ.)
Operating Temperature0 ~ 50 °C
Storage Temperature-20 ~ 60 °C
ApplicationsComputer Monitor, Industrial Equipment, Medical Imaging

RisingStar is not only a manufacturer of passenger information display screens, but also an important participant in improving the urban travel experience. With leading display technology and high-quality products, we will provide clearer and more durable display solutions for more industries and fields. We look forward to working with global suppliers to jointly promote the development and application of smart displays and open a new chapter of smarter and more convenient future travel.

⚙️
