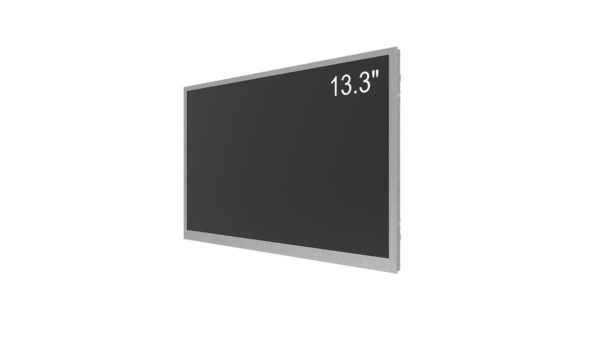

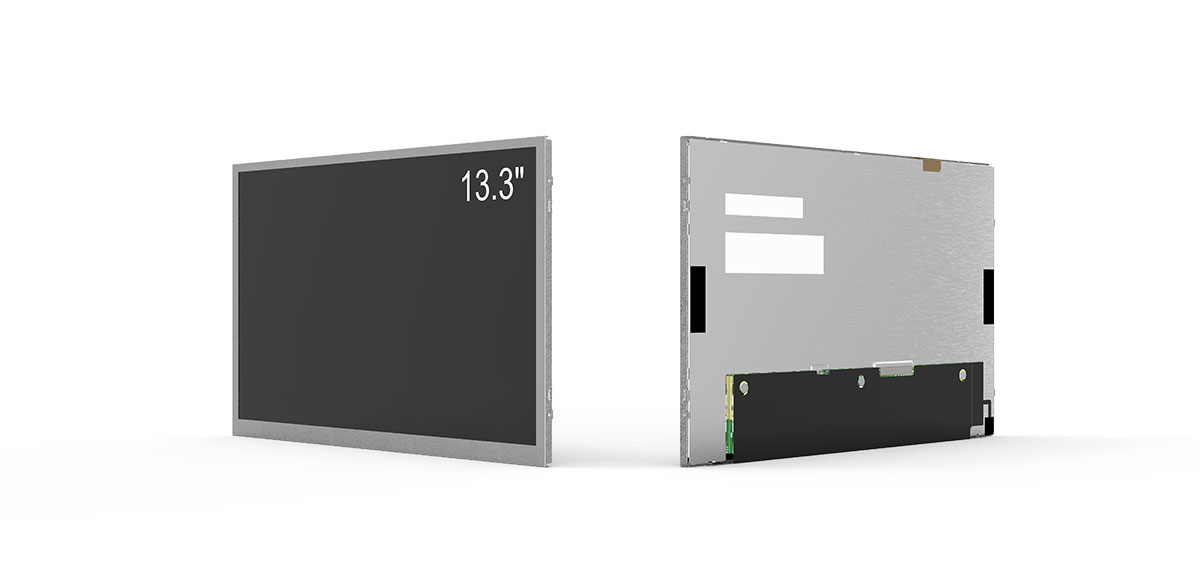

13.3 Inch sunlight readable lcd screen
13.3 inch 500 Nit High brightness LCD module with high brightness, high definition, high contrast and other features. The product uses LED backlight technology and is equipped , which can provide a clear and bright picture effect, and can maintain a good display effect even under strong light. At the same time, the LCD display module can also be equipped with touch screen function, support multi-touch control, can facilitate the user to manually touch operation.
Model No.: RS133X0M-GE10
Size: 13.3 inch
Resolution：1920(RGB)×1080
Brightness：2500/3000/4000/4500 Nits
Operating Temperature：-20～70℃
RS133X0M-GE10 Specifications
| Panel Brand | Risingstar | Panel Model | RS133X0M-GE10 |
| Panel Size | 13.3″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920(RGB)×1080, FHD 166PPI | Pixel Format | RGB Vertical Stripe |
| Display Area | 293.76(W)×165.24(H) mm | Bezel Opening | / |
| Outline Size | 300.26(H)×187.45(V) ×2.4(D) mm | Surface | anti-glare (Haze 25%)，Hard coating (3H) |
| Brightness | 2500/ 3000/ 4000/ 5000nits | Contrast Ratio | 800:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Display Mode | IPS, Normally Black, Transmissive |
| Display Colors | 16.7M , 73% NTSC | Response Time | 30 (Typ.)(Tr+Td) |
| Frequency | 60Hz | Supply voltage | 3.3V (Typ.) |
| Weight | / | Signal Interface | LVDS (1 ch,8-bit),30pins |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C | ||
.
.
