18.5 Inch Sunlight Readable LCD Monitor
Model No.: RS185E0M-GE10
Size: 18.5 inch
Resolution：1920*1080 / 3840(RGB)×2160
Brightness：2500/3000/4000/4500 Nits
Operating Temperature：-20～70℃
RS185E0M-GE10 Specification
| Panel Brand | RisingStar | Panel Model | RS185E0M-GE10 |
| Panel Size | 18.5″ | Panel Type | a-Si TFT-LCD, LCM |
| Resolution | 1920×1080 | Pixel Format | RGB Vertical Stripe |
| Display Area | 409.8(W)×230.4(H) mm | LCD screen | ADS |
| Outline Size | 430.4 × 254.6 × 13.4 (H×V×D) | Surface | Hard coating(3H), Anti-glare low reflection treatment of the front polarizer (Haze 25%) |
| Brightness | 1000 (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Min.)(CR≥10) | Display Mode | S-IPS, Normally Black, Transmissive |
| Display Colors | 16.7M 68% NTSC | Response Time | 6 (Typ.)(G to G) ms |
| Frequency | 60Hz | Supply voltage | 5.0V (Typ.) |
| Weight | TBD (Typ./Max.) | Signal Interface | LVDS 30 pins |
| Environment | Operating Temp.:-20℃~70℃; Storage Temp.:-20℃~70℃ | ||
.
.
RisingStar Physical Products
RisingStar Connector
。
。

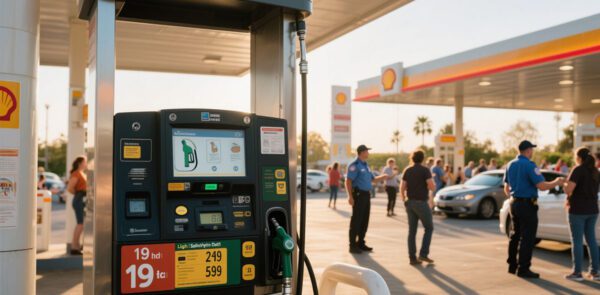

High Brightness Sunlight Readable Screen Outdoor Refueling Case
.
.
RisingStar Sunlight Readable Display Other Specifications
| Model name | Size (inch) | brightness | Resolution | Operating temperature |
|---|---|---|---|---|
| RS101ICE-GE07 | 10.1 | 700 | 1280*800 | -20 ~ 70 ℃ |
| RS156HCE-GE10 | 15.6 | 1000 | 1920*1080 | -20 ~ 70 ℃ |
| RS190E0M-GE10 | 19 | 1000 | 1280*1024 | -20 ~ 70 ℃ |
| RS215FHB-GE15 | 21.5 | 1500 | 1920*1080 | -20 ~ 70 ℃ |
| RS270FHB-GD20 | 27 | 2000 | 1920*1080 | -20 ~ 70 ℃ |
| RS320DPY-GD30 | 32 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS490EPY-GD30 | 49 | 3000 | 1920*1080 | -20 ~ 70 ℃ |
| RS550EPY-GD45 | 55 | 4500 | 1920*1080 | -20 ~ 70 ℃ |
| RS650QUB-GD30 | 65 | 3000 | 3840*2160 | -20 ~ 70 ℃ |
| RS750ENT-GD40 | 75 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS860EQL-GD40 | 86 | 4000 | 3840*2160 | -20 ~ 70 ℃ |
| RS980DQY-GD35 | 98 | 3500 | 3840*2160 | -20 ~ 70 ℃ |
